Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments

Name: Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments
Brand: Cartesysj
Price: 8 USD

China Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments wholesale

Brand Name : Cartesysj

Model Number : CTDCG-3-4WD

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : $8,998.00 - $169,497.00/sets

Payment Terms : L/C,T/T

Supply Ability : 1 Set/Sets per Month

Delivery Time : 20-25 working days

Packaging Details : Wooden packing

Name : Automobile Chassis Dynamometer

Car Fitment : BMW - Europe

Warranty : 12 Months

LOAD : 4t

Model Name : CTDCG-3-4WD

Port : Guangzhou

Working voltage (current) : 96V ×35A

The power supply : 220V ±10% 50HZ

Contact Now

Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments

Product description:

The 4WD horsepower dynamometer is specially used to measure the chassis dynamic performance of the2WD and 4WD vehicles. It can not only accurately measure the dynamic performance at each speed, but also simulate the road to carry out the road test of routine and multi-road of the vehicles, and can also be used for vehicle refitting and ECU debugging and calibration , etc.

Technical parameters:

Model	CTDCG-3-4WD	CTDCG-10	CTDCG-13
Maximum axle-load (kg)	3000	10000	13000
Maximum absorption power (kw)	160	250	300
Maximum braking torque (Nm)	1600	2500	3000
Maximum testing speed (km/h)	130	130	130
Drum diameter x length (mm)	∮216×1000	∮318×1000	∮373×1000
center distance (mm)	480	495	600
Inside the drum width/width (mm)	700/2700	700/2700	700/2700
Working voltage (current)	96V ×35A	96V ×35A	96V ×35A
The power supply	220V ±10% 50HZ	220V ±10% 50HZ	220V ±10% 50HZ

Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments

Packing & Delivery

Wooden packing

FAQ

1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(50.00%),South Asia(10.00%),Africa(10.00%),Eastern Europe(10.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Northern Europe(3.00%),North America(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Vehicle Sideslip Tester,Roller brake tester with axle load,flat plate test line,Automobile power performance and Chassis dynamometer,Vehicle suspension performance Tester

4. why should you buy from us not from other suppliers?
Multi design of overall system scheme Site layout planning and Technological Consulting Systematic site installation and training Online daily maintenance and technical support

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,PayPal,Cash;
Language Spoken:English,Chinese

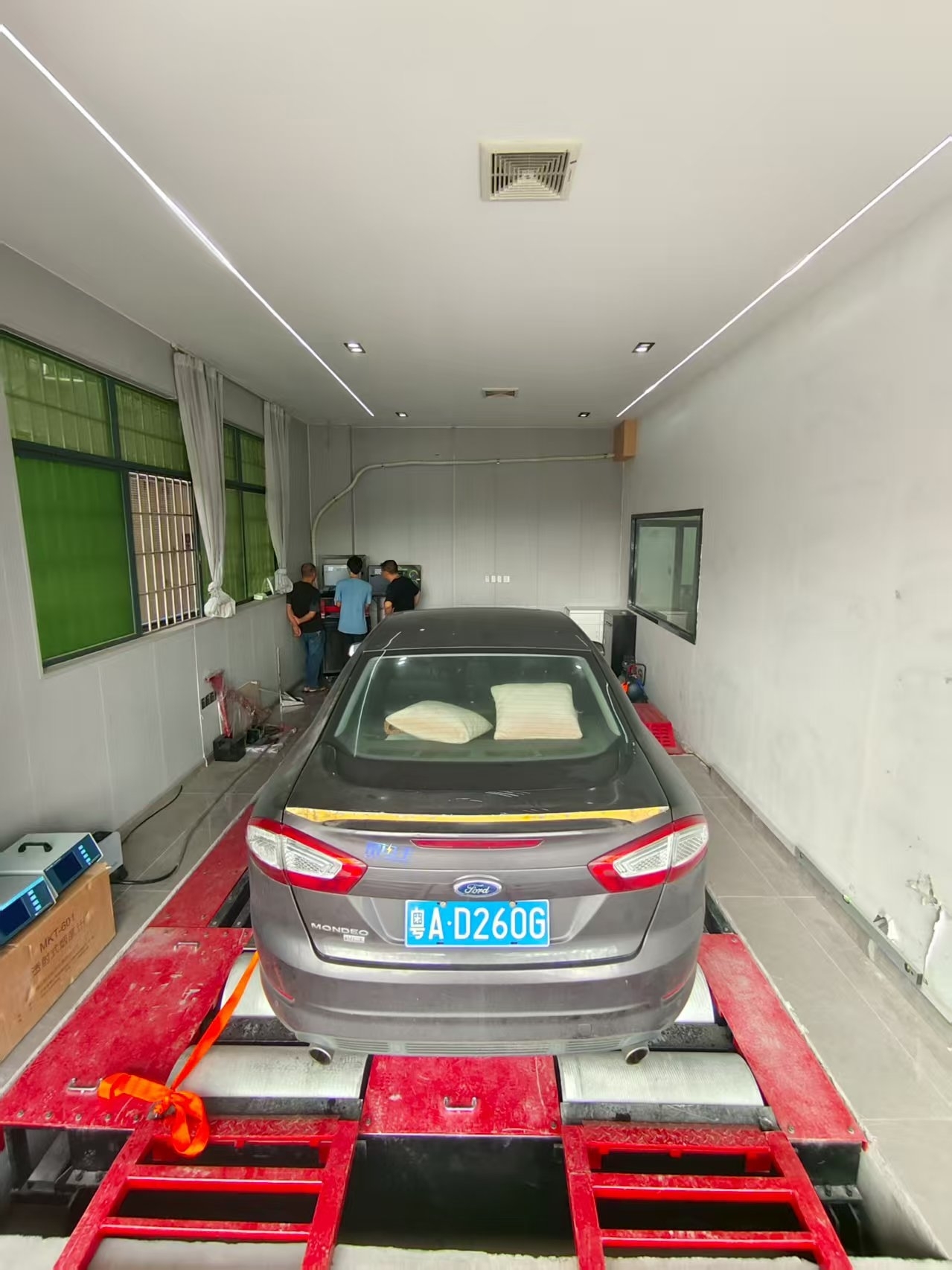

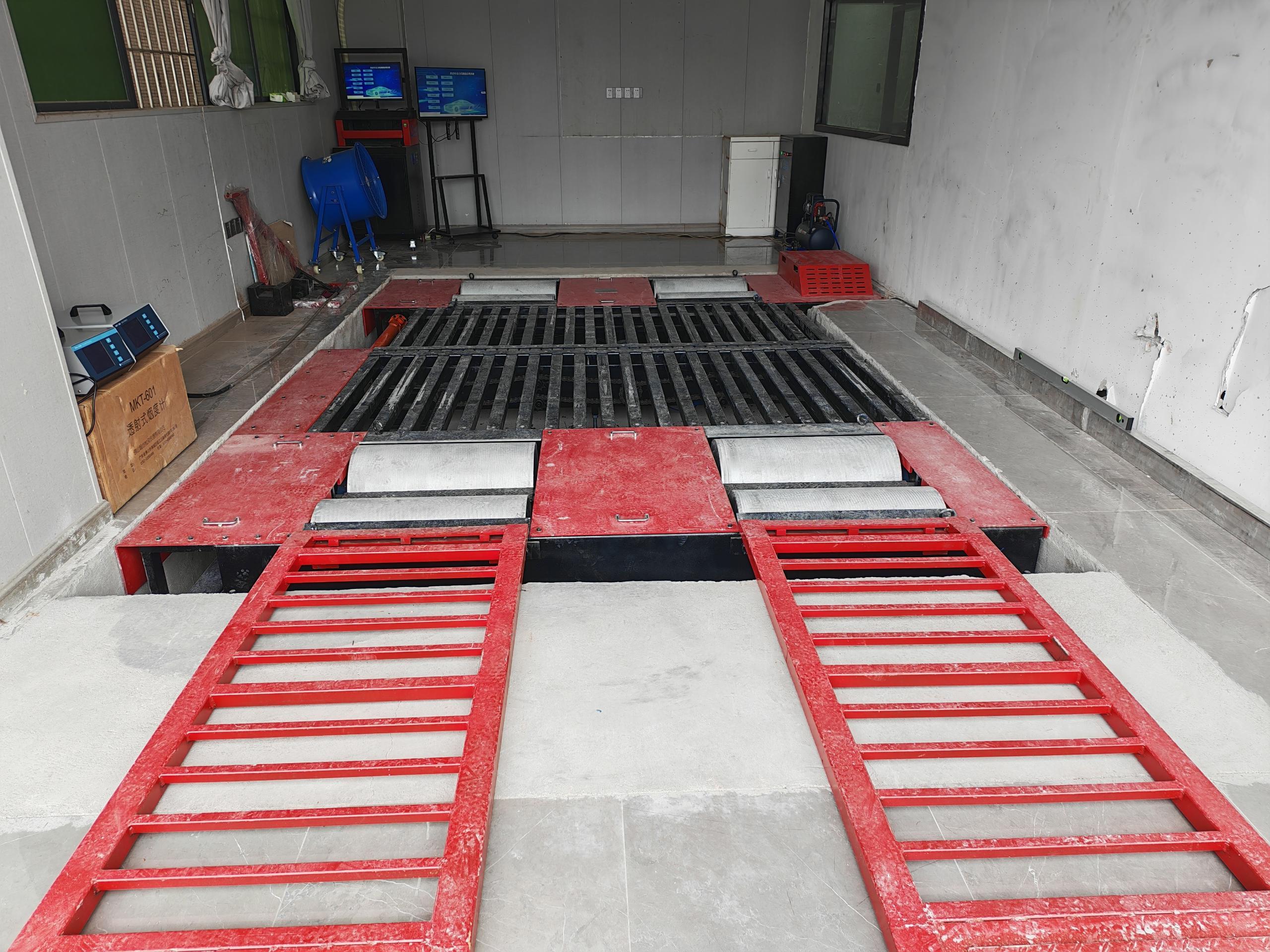

Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments Images
